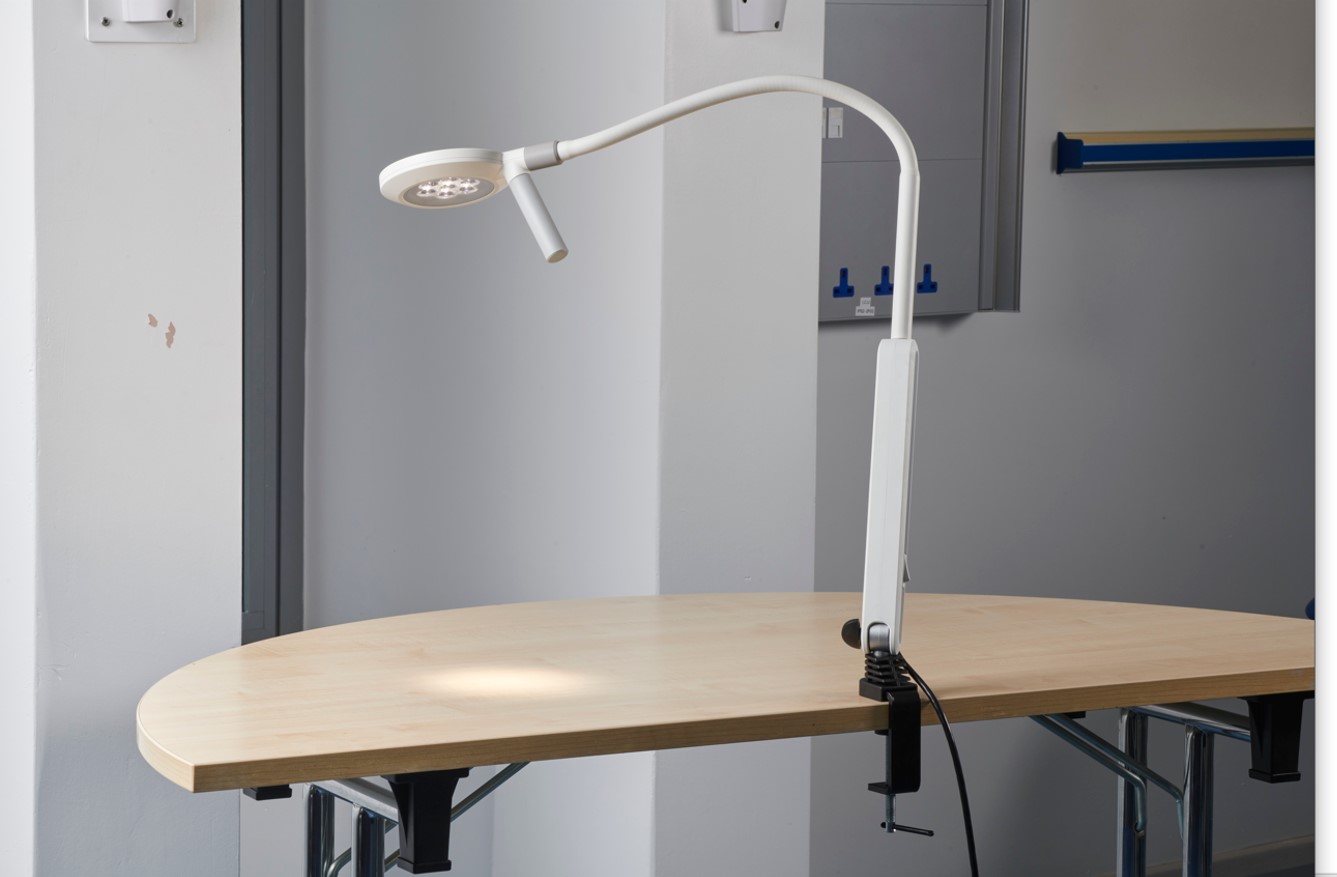

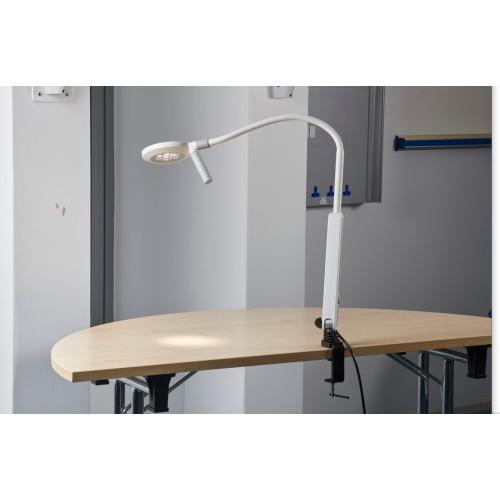

Coolview CLED10 Desk Mounted Examination Lamp
Compact, high intensity examination light with slimline light head
- Professional Light Quality
- Thanks to its unique diamond optics, Coolview CLED10 provides 50,000 Lux of intense bright light at 0.5m, perfect for medical procedures.
- Large Illuminated Area
- A large illuminated area of 180mm makes it easy to examine large areas of tissue.
- Ergonomic
- The CLED10 offers a 280° lamp head roll rotation with an ergonomic handle offering comfortable control of the light position.
- Flexibility
- The flexible arm ensures positional accuracy and good durability, and the sealed construction protects against contamination.
- Colour Corrected Light Source
- The colour corrected light source with a colour temperature of 4,400°K allows for accurate representation of tissues during examination.
- Infection Control
- Sealed head to protect from dust and light liquid ingress.
- High Colour Rendition
- CLED10 reproduces all of the visible colours naturally and accurately. The high Ra of >93 describes the exceptionally high quality of white light, whilst the high R9 of >90 measurement describes how it accurately reproduces visible red.
Service Interval: 12 months
Warranty: 12 months
Please note this item is non-refundable. Please contact Customer Care for the lead time on this item, usually 1 week.
Installation is NOT included. We recommend that an experienced medical device engineer performs the fitting.
Technical & Performance Information
Unless otherwise stated, all linear dimensions in mm, angles in degrees (±5º) and weights in kg
| Mount Type | Desk Mount |
| Lamphead | CLED10ST |
| Weight (kg) | 1.5 |
| Type of luminaire (to BS EN 60601-2-41) | Examination (Luminaire for diagnosis) |
| Medical Device Classification | I |
| Electrical Classification | II |
| Conformity | CE (EU MDR 2017/745); BS EN 60601-1; BS EN 60601-2-41 |
| Additional Information | Power Lead supplied loose with UK plug |
| Mount Type | Desk Mount |
| Mount Size HxWxD (mm) | 150 to 210 x 70 x 40 |
| Weight of Mount (kg) | 0.35 |
| Fixing Type | Moveable |
| Available Rotation Lateral about Spindle (±5°) | 360° |
| Interface orientation | Vertical Up |
| Colour | Black |
| Material | Polyamide / Steel |
Not compatible with tub tables due to 870mm arm reach
| Lamphead/Arm Data | CLED10ST |
| Light On/Off switch location | Rocker Switch on Arm |
| Fastener type | Ø 16 mm Pin |
| Base Joint Type and Angle (°) | Articulating 180° |
| Base Rotation about fastener (°) | 360 (max) |
| Arm Reach (mm) | 870 |
| Lamphead Diameter (mm) Approx | 130 |
| Lamphead Pitch (°) | n/a |
| Lamphead Roll (°) | 280° |
| Lamphead & Arm Weight (kg) Approx | 1.1 |
| Additional | With Grip Handle |
| Power Supply Lead(s) [plug] | 1.8 m [UK] |
| Lamphead Photometric Data [*-10% / +20% ] | CLED10ST |
| Central Illuminance @ 0.5 metre (Lux max) * | 50,000 |
| Field diameter D10 @ 0.5 meter (mm)* | 180 |
| Field diameter D50 @ 0.5 meter (mm)* | 100 |
| Nominal working distance from lamphead m | 0.5 |
| Colour rendition Ra (Av R1-R8) | >93 |
| Colour rendition R9 (red) | >90 |
| Colour rendition R13 | 97 |
| Colour rendition R15 | >92 |
| Colour temperature (K)* | 4,400 K |
| Number & Type of lights per Lamphead | 7 LED |
| LED life (hours) | 50,000 |
| Primary Power Supply | 100-240VAC 50/60 Hz |
| Secondary Power Supply Unit | Integral |
| Power Consumption @ Nominal Intensity | 10.5-13 W |
| Ingress Protection Rating | IP20 |
Mounting Options
- Desk
- Easy repositioning of the mounting
- Back-plate (Wall)
- Should be used on non load-bearing walls, for example partition walls
- Can be hard wired into the wall, freeing up plugs and floor space
- More secure than a mobile light
- Wall
- Affordable cost option
- Can be hard wired into the wall, freeing up plugs and floor space
- More secure than a mobile light
- Mobile
- Ideal for getting as close to the patient as possible
- Easy to move and position
- Use the light in multiple rooms
- Rail
- Added flexibility over a wall mounted light
- Allows the light to be positioned nearer to the point of examination
- Allows for easy movement along the couch length
