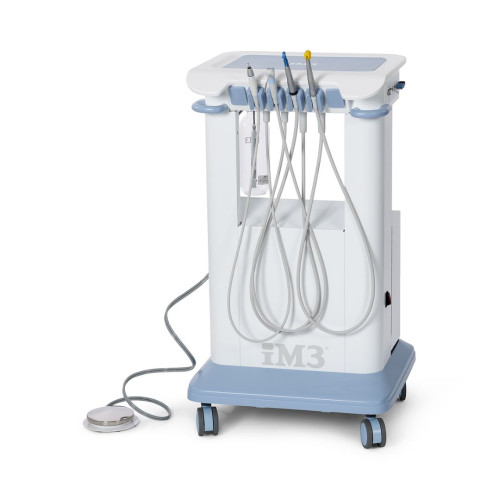

iM3 Evolve Basic Dental Cart with Oil Free Compressor and Built-in iM3 P6 Scaler

The iM3 Evolve dental unit is the perfect model for everyday dentistry. As standard, the Evolve comes with an LED high-speed handpiece, a lowspeed air handpiece, and a three-way syringe. A built-in piezo scaler is a popular optional extra, resulting in a complete unit for basic dentistry.

Handpieces included:

• 1x High Speed - Air driven line with coolant and iM3 High Speed Advantage Handpiece (L7300)
• 1x Low Speed - Air driven line without coolant and iM3 Low Speed Advantage Handpiece (L6200 & L6250)

High Quality Materials - Hand Made in Europe

iM3 is renowned for our long lasting dental units, with some units still working in practice that were first manufactured over 30 years ago by our founder in Australia. The new Evolution Range builds on this long lasting ethos creating dental units made for the rigors of working in the extreme environments of veterinary clinics worldwide.

All the Evolution Range dental units are hand built using materials that can withstand the everyday working in a busy veterinarian clinic. From the full aluminum frame and Panels, to the medical grade powder coating, stainless steel screw, to the corian dental top. iM3 build quality sets standards that others could only wish for. The Evolution Range sets the bench mark in usability and long life that is needed in every veterinary dental practice.

Features of the iM3 Advanced

• LED High Speed Handpieces:
  • European-made LED handpiece offers 400,000 rpm for efficient sectioning, with daylight-like light for comfortable work and clear colors. Its 360° swivel coupling minimizes fatigue through easy rotation and low weight. The triple coolant spray provides precise cooling, while a hygienic head prevents aerosol intake.
• Low Speed Handpieces - Air Driven:
  • Air-driven handpieces are low torque and are easier to work with, making them suitable for beginners. The Advantage Low-Speed Motor is lightweight and shorter than conventional models, reaching a maximum speed of 25,000 rpm.
• Three-way Syringe:
  • Capable of producing a blast of air, a spray of water, or a combined mist, the Evolution range features a lightweight and ergonomic syringe with a quick disconnect for easy maintenance.
• Built-in Scaler:
  • European-made piezo-ceramic scalers are now built-in as an optional feature on iM3 dental units, high quality and with LED light. Alternatively, external scalers can be used, thanks to a coolant outlet and power board.
• Handpiece Cables:
  • The new handpiece cables feature a quick release and a built-in oil filter, allowing for even easier maintenance. The straight cables are easy to clean and don’t tangle.
• Foot Control:
  • The foot control is used to operate all instruments on the unit. It is airbased, making it waterproof and more reliable than electric pedals.
• Bur Magnet:
  • The iM3 designed magnetic bur holder prevents burs from falling on the ground; they are held in place right where you need them. The Evolution Range features magnets on both sides of the control top to save you from reaching over the handpieces.
• Cartridge Toggles:
  • All iM3 toggles can be changed in seconds due to the cartridge valve system used by iM3. This advanced feature allows for the quick cleaning and replacement of valves, reducing machine downtime and loss of revenue.
• Instrument Tray:
  • The Evolution Range features a built-in instrument tray with a non-slip silicon mat. The Corian® surface is impervious to bacteria and easy to clean, unlike fiberglass and plastics.
• Bottles & Straw:
  • All Evolution Range units are fitted with two coolant bottles, one for the CLS solution and the other for water. The latest innovations remove the need for a pressure switch, as the unit is able to detect the presence of the bottles independently. The iM3 Straw is standard on all units in the range. The Straw provides continuous disinfection to the coolant water for 365 days. It is non-toxic, non-corrosive, and does not adversely affect composite bond strength.
• Handles:
  • You asked, and we provided: the iM3 Evolution Range features a robust handle for maneuvering the unit into position.
• Lockable Casters:
  • These hospital-grade castors are designed to remain mobile and not trap hair or dirt. The back castors feature a new locking mechanism.
• Internals:
  • The new Evolution Range builds on iM3’s long-lasting ethos, creating dental units made for the rigors of working in the extreme environments of veterinary clinics worldwide. All internal air, water, and electric lines are color-coded, and electronics are modular for easy repair should it become necessary, most of which you can carry out yourself.
• Compressor:
  • iM3 developed the first oil-free compressor fitted to a dental machine with suction. Oil-free technology eliminates the risk of oil contaminants entering the air supply of the dental machine. It also greatly reduces the maintenance regime.
• Air Flow:
  • iM3’s innovation employs a chimney effect to keep compressors cool, allowing them to run for over 10 hours continuously inside a box. This natural convection process maintains reliability without the need for additional cooling systems.
• Sound Proofing:
  • Using high-quality soundproofing from the automotive industry helps the Evolution Range be user and patientfriendly, with reduced noise and reduced heat.
• Power Board:
  • On-board power outlets for additional equipment, helps keep the surgery organised.

iM3 Advantage High Speed handpiece

The Advantage LED High Speed (400,000 rpm) Handpiece and Swivel with inbuilt generator creates its own LED light. With a color temperature of 5,500 K, the Advantage produces a radiation spectrum that corresponds to daylight. The high-color rendering index (CRI 90) of the LED enables relaxed work thanks to daylight-quality light and provides exceptional reproduction of natural colors and clear color contrasts in the mouth. The Advantage minimizes fatigue thanks to the easy 360o rotation of the handpiece on the coupling, the low weight and the slender design. The unique handpiece design also allows for component replacement on site by the user.

• Simple FG bur changing - push button design and yellow iPush included.
• Precision bur cooling - triple coolant spray produces a mist around the bur.
• Patented hygienic head - prevents aerosol particles from being sucked into the turbine.
• Replaceable water filter, four-hole connection, autoclavable. Made in Austria, One year warranty. Supplied with L7050 iPush & MD30 oil.
• Veterinary-specific reinforced metal threads and couplings set the iM3 Advantage handpieces apart from human dental handpieces which typically use plastic. As a result, iM3 Advantage handpieces are built to far better withstand the strains of a veterinary workload than the human dental equivalents.

Low Speed Handpieces - iM3 Advantage

The classic air only option, great for polishing, the Advantage Low Speed Motor is ergonomically designed to be more user friendly. The motor is light weight and shorter than conventional low speed motors.

The Advantage 4:1 reduction straight nose cone reduces the speed of the low speed motor and accepts disposable prophy angles for polishing. The unique design means the nose cone is shorter and lighter and fitting prophy angles is as simple as pushing them on!

iM3 recommends Rock & Roll polishing angles (L7466), the 60° reciprocating “back and forth” action of the prophy cup prevents muzzle hair from being tangled and allows the cup to have continuous contact on the tooth surface. The reciprocating action also reduces heat and friction on the tooth and doesn’t splatter prophy paste.

iM3 Evolution Range Units have a 3 year parts warranty

All handpieces have a 1 year warranty

Service interval: 1 year
